Overview

---

Follow these steps to set up your Android device running Android 2.0.x and above to use WPA2-E encrypted wireless at UCSD.

Critical Concepts

---

Before you begin, you must have:

• An Active Directory (AD) username and password. Your username is usually the first part of your UCSD e-mail address (before the @ symbol). If you have forgotten your password, you can reset it.
• An Android device with Android 2.0.x or above installed.

Steps to Take

---

1. Configure your Wi-Fi.

Settings menus can vary across different Android versions. Use the steps below that most closely match to your version.

On older versions of Android:

1. Open your device's Settings app

2. Select Wi-Fi



   Android 10

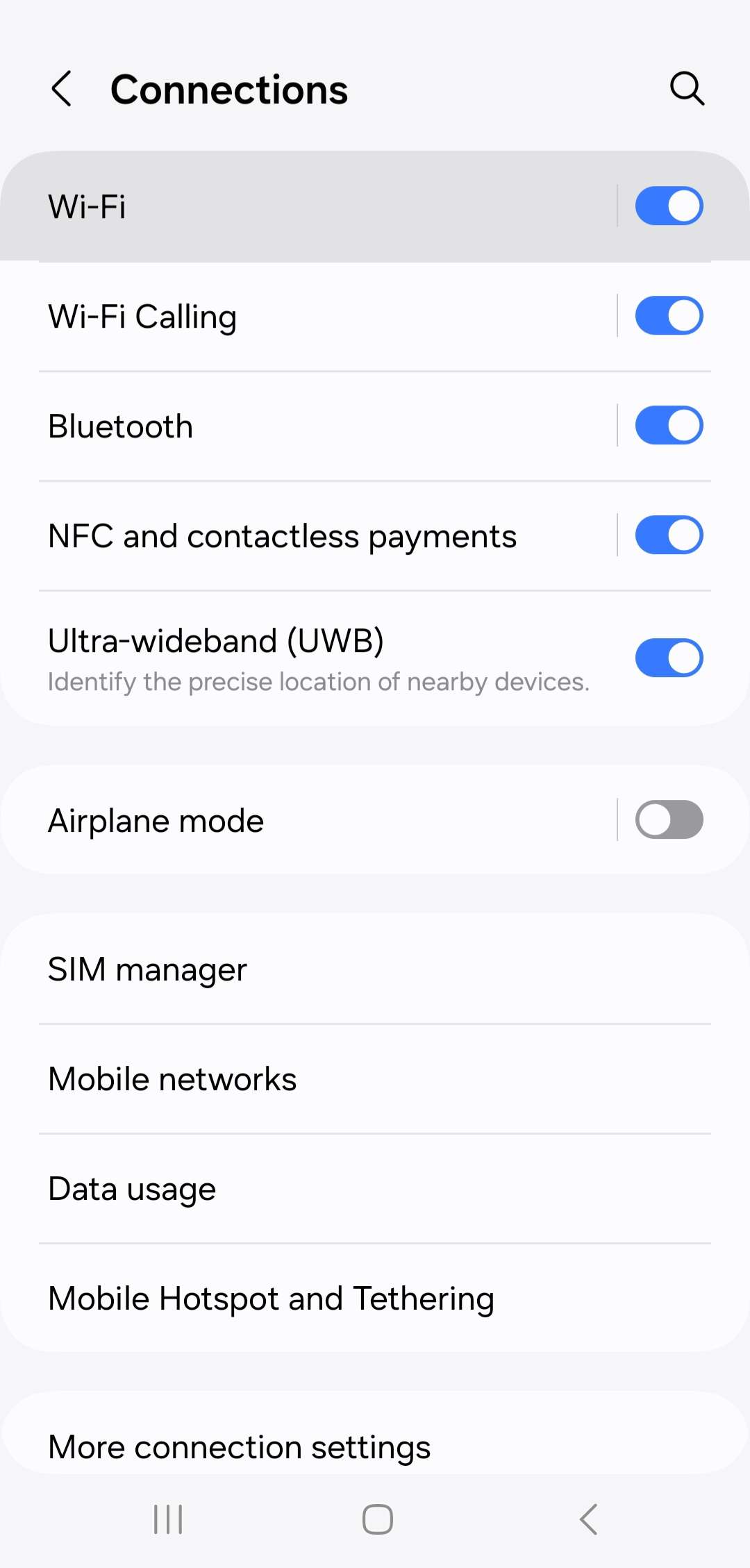

On newer versions of Android:

1. Open your device's Settings app
2. select Connections and tap on Wi-Fi



   Android 14

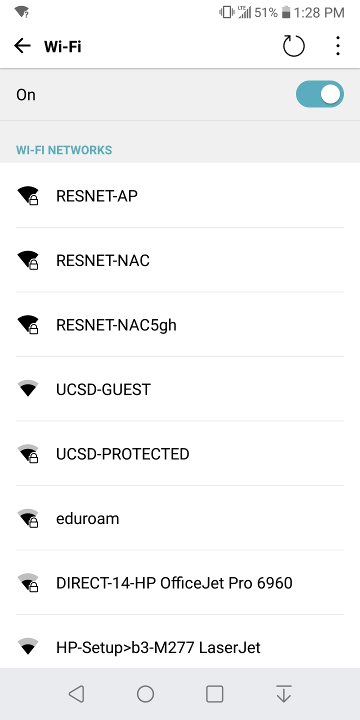

2. Select the encrypted wireless service.

• Under Wi-Fi, select UCSD-PROTECTED.

  • If UCSD-PROTECTED isn’t on the list, you may need to move to another area with better connectivity



    Android 10+

3. Configure UCSD-PROTECTED option.

Configuration menus can vary across different Android versions. Use the steps below that most closely match to your version.

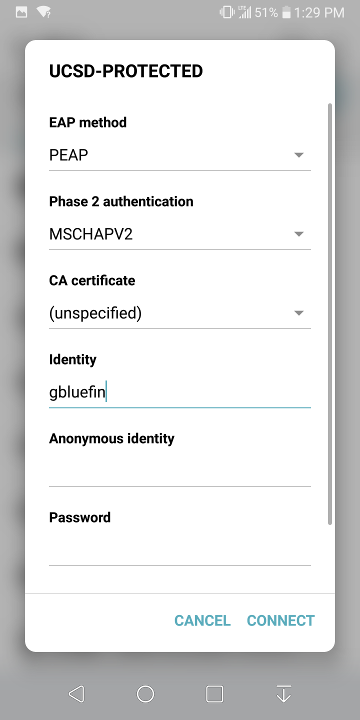

On older versions of Android:

1. EAP Method: Select PEAP.
2. Phase 2 Authentication: Select MSCHAPV2.
3. For CA Certificate, you typically have two options:

   1. Select N/A, unspecified), or Do not validate.
   2. Select Use system certificates.

      • Online Certificate Status: Select Do not validate.
      • Domain: Enter ucsd.edu.
4. Identity: Enter your Active Directory username.
5. Anonymous Identity: Leave blank or enter anonymous@ucsd.edu.
6. Password: Enter your Active Directory password.
7. Click Connect.



   Android 10

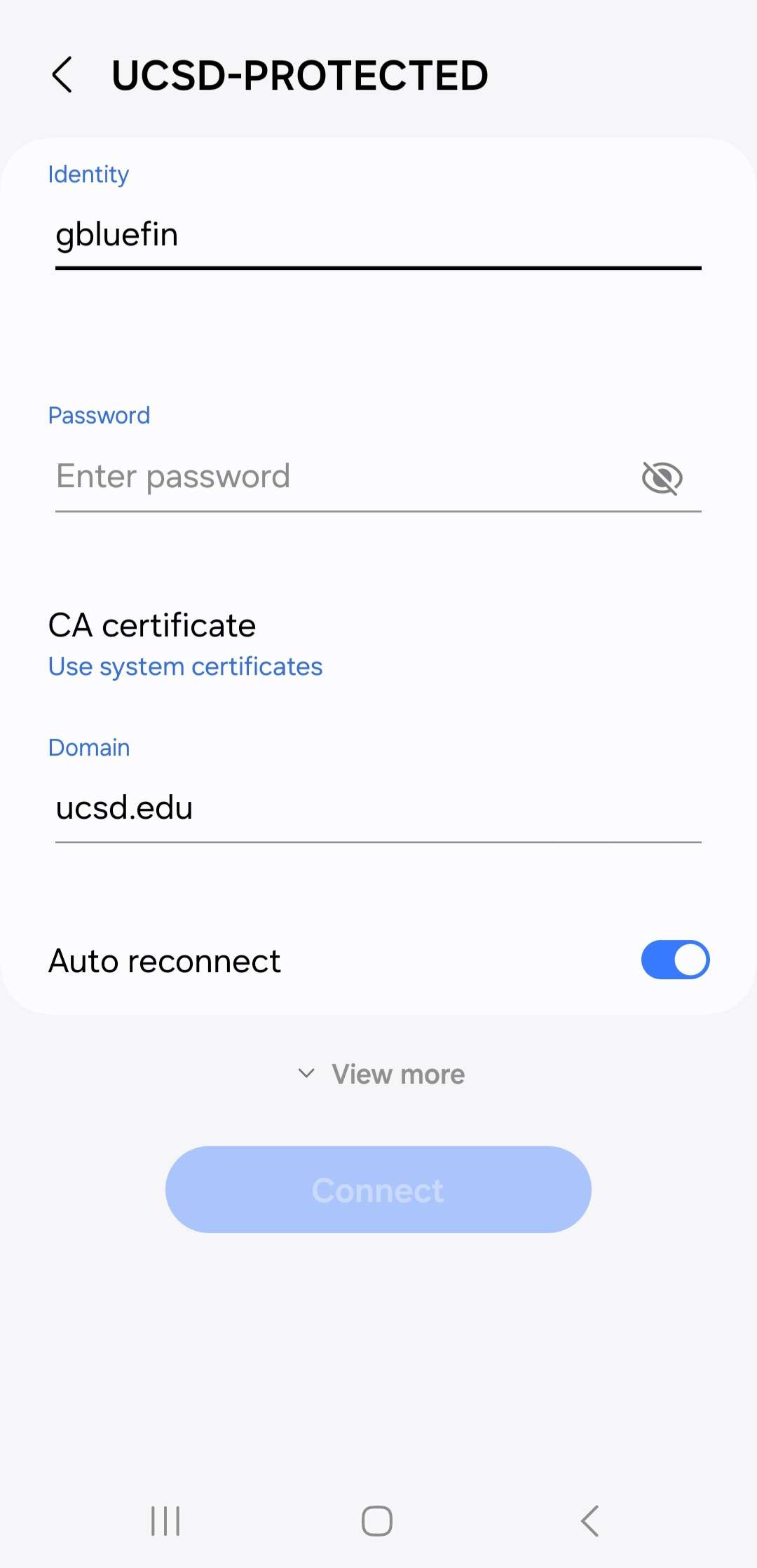

On newer versions of Android:

1. Identity: Enter your Active Directory username.
2. Password: Enter your Active Directory password.
3. For CA Certificate, you typically have two options:

   1. Select N/A, unspecified), or Do not validate.
   2. Select Use system certificates.

      • Online Certificate Status: Select Do not validate.
      • Domain: Enter ucsd.edu.
4. Click Connect.



   Android 14



4. Verify your connection.

1. Under Wi-Fi, you should see that you are Connected underneath UCSD-PROTECTED



   Android 10+
