Overview

---

This document describes how to test and maintain custom Docker images for courses on the Data Science/Machine Learning Platform (DSMLP). Information about standard DSMLP Docker images is also available.

For more information about DSMLP, see the FAQ.

Development

---

Please see https://github.com/ucsd-ets/datahub-example-notebook/blob/master/additional-information.md for Dockerfile best practices

Prerequisites

To have a custom Docker image on DSMLP, you'll have to request it when submitting an Instructional Technology Request (CINFO; cinfo.ucsd.edu) for your course. If you already submitted your request, update the support.ucsd.edu Service Now (SNOW) ticket that the CINFO request automatically created with the specifics. Please include the following:

• A list of packages you want to add to your custom software environment
• A list of email addresses you'd like to add as maintainers to the custom image's GitHub repository

The DSMLP team will configure a GitHub repository with a Dockerfile and a build process for automatically updating the image upon a git push to the repo. We typically create git branches to correspond to specific Docker tags. For example, pushing changes to the wi23 branch on Github will update the {docker_image_name}:wi23 image.

Updating Base Image

New base images are released from time to time. To update use a new base image, update the FROM line of the Dockerfile. For example, to change from the Spring 2023 image (2023.2-stable) to the Fall 2023 image (2023.4-stable) you would change the FROM line to the Dockerfile to:

FROM ghcr.io/ucsd-ets/datascience-notebook:2023.4-stable

Creating a tag

A new version of the image is built and tagged each time the git repository is updated. The tag is the name of the branch, e.g. main, The previous tag main is overwritten.

To preserve a version of an image you can create a tag. For example, you can create a tag named "fa23" for the version of the image used in fall 2023. You can then request that the course uses the "fa23" tag.

Branches

1. Create a new git branch within the Github repo. You can call it dev or test, anything that indicates it's in a test phase. See this document for managing branches: https://docs.github.com/en/desktop/contributing-and-collaborating-using-github-desktop/making-changes-in-a-branch/managing-branches
2. Add the required software and files for your course. For basic installation instructions, see this document: https://github.com/ucsd-ets/datahub-example-notebook#step-1-customize-the-dockerfile

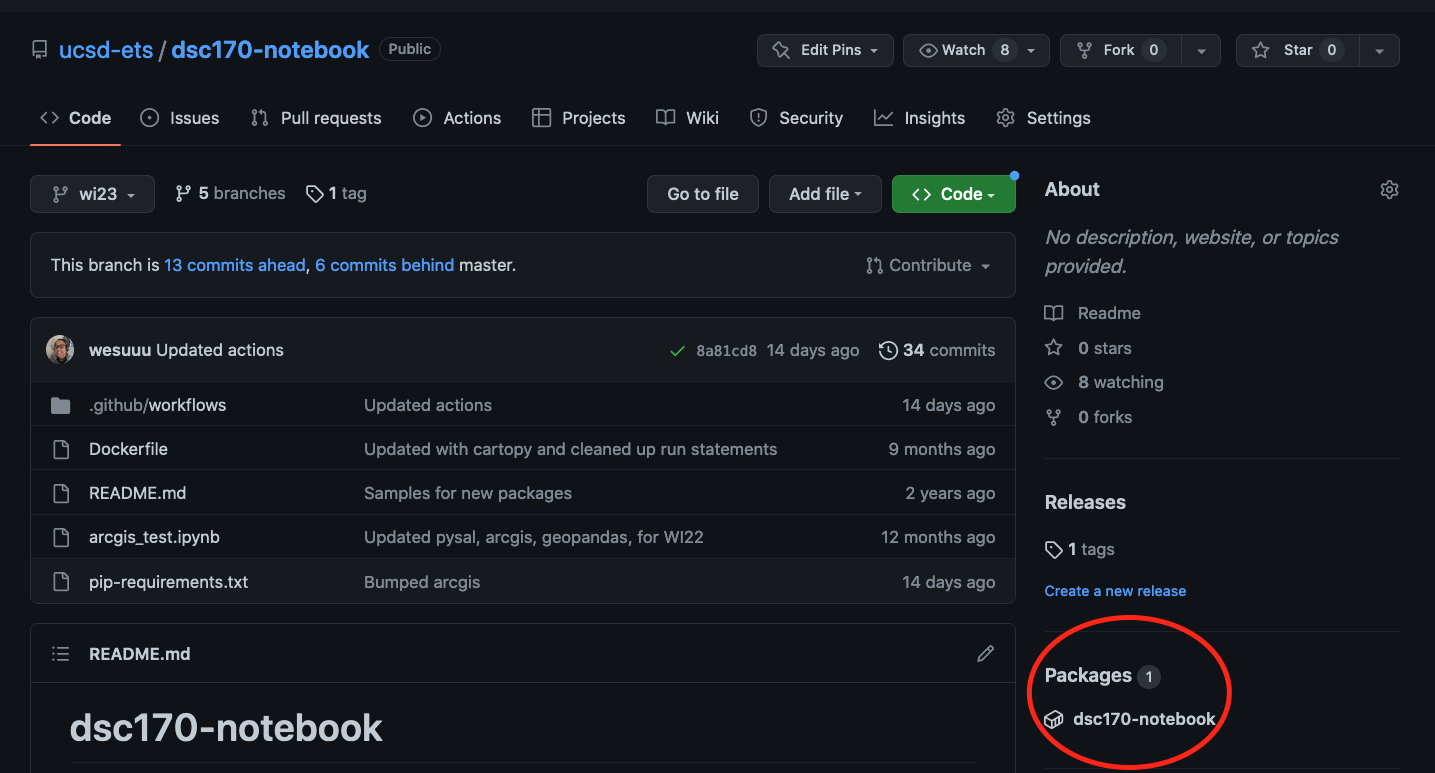

3. After committing your changes to the test branch, the build process will kick off. It will eventually publish your new image to your GitHub repository's "Packages" section.

Note: If step 3 didn't complete–i.e., the image didn't build–look through the build logs (located under the “Actions” tab) and investigate why it didn't build correctly. Make the necessary changes and commit your changes to the branch to start a new automated build process.

Testing

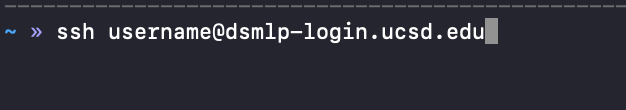

1. Connect to the UCSD VPN. Open a terminal on your computer and SSH to dsmlp-login:

2. Use the launch.sh command to test your image. You'll have to supply the -i image:tag flag with your myimage:tag, the -P Always flag, and the -W COURSE_ID flag. The -i flag specifies the image, the -P specifies the image pull policy. Always will always pull the image. -W specifies the workspace.

   Example
   launch.sh -i myimage:tag -P Always -W COURSE_ID

   To get COURSE_ID please run "workspace --list"


3. This script will generate a URL.  Open it in your browser, and use this notebook environment to test out your custom features.
4. If everything works as expected, you can now create a pull request to the tag for your course on DSMLP. For example, if my course uses cogs101-notebook:wi23 and I confirmed that cogs101-notebook:test works, I'll create a pull request to the wi23 branch.
5. Have any team member review your work and close the pull request. The build process should now start and rebuild your course image. Check the logs to ensure that the production image builds correctly.
6. Test your newly built container on datahub.ucsd.edu by launching it from the “Launch your Environment” spawn page.
